Description

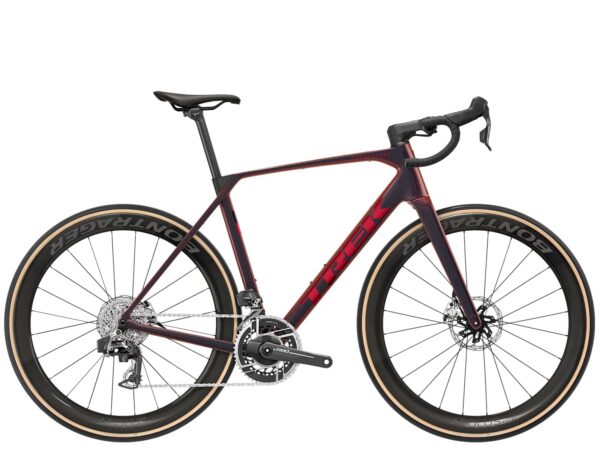

The Trek Domane SLR 9 AXS Gen 5 is our highest-end endurance road bike with ultralight carbon and wireless performance. Designed around our lightest 900 Series OCLV Carbon frame, it features a SRAM RED AXS 2×12 drivetrain with an integrated power meter, Bontrager Aeolus RSL 51 wheels, and a comfortable carbon riser bar designed for all-day rides.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Domane SLR 9 AXS specifications

Frameset

Frame

900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle

Fork

Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Wheels

Valve

Bontrager XXX TLR valve, 67 mm

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Wheel rear

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142×12 mm thru axle

Tyre

Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm

Wheel front

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100×12 mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

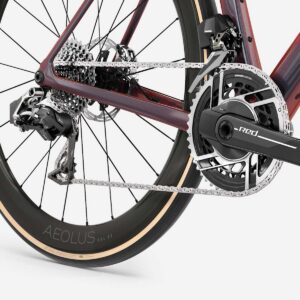

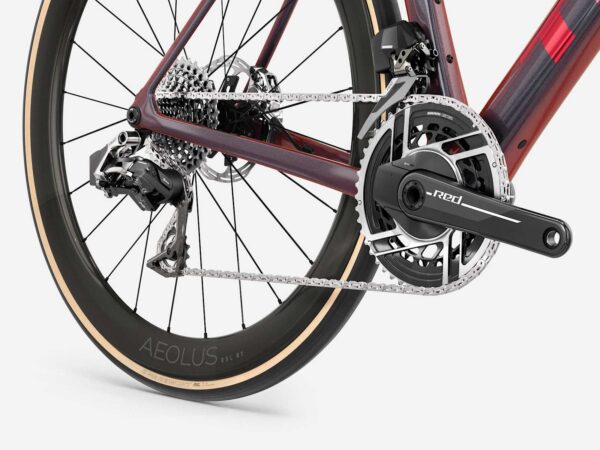

Drivetrain

Chain

SRAM RED E1, 12/13-speed

Crank

SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length (XS, S)
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length (M, ML)
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length (L, XL)

Rear derailleur

SRAM RED AXS E1, 36T max cog

Cassette

SRAM RED XG-1290 E1, 10-36, 12-speed

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Shifter

SRAM RED AXS E1

Front derailleur

SRAM RED AXS E1, braze-on

Components

Stem

Trek RCS Pro, -7-degree, 80 mm length (XS)
Trek RCS Pro, -7-degree, 90 mm length (S)
Trek RCS Pro, -7-degree, 100 mm length (M)
Trek RCS Pro, -7-degree, 110 mm length (ML, L)
Trek RCS Pro, -7 degree, 120 mm length (XL)

Saddle

Verse Short Pro, carbon rails, 145 mm width

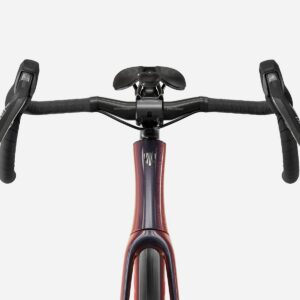

Handlebar

Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width (XS)
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width (S)
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width (M, ML)
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width (L, XL)

Brake rotor

SRAM Paceline X, rounded, CentreLock, 160 mm

Seatpost

Bontrager RSL carbon, 27.2 mm, 5 mm offset

Handlebar tape

Trek gel cork

Electric parts

Battery

SRAM AXS battery pack (with charger)

Accessories

Tube

Pirelli P Zero SmarTube, TPU

Hub body

DT Swiss 240 alloy, sealed cartridge bearing, CenterLock, SRAM XD-R driver, 142×12 mm thru axle

Spacer

Trek Road Integrated Stem Spacers

Trek may change specifications without notice. Please confirm the spec with us before you order.
