Description

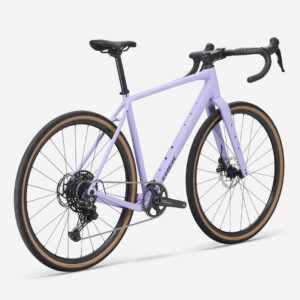

The Trek Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring beyond the pavement. Its modern endurance geometry keeps you comfortable over rough roads and long miles, while a carbon fork helps smooth out chatter and potholes. With clearance for up to 50mm tires, 10-speed Shimano CUES shifting, mechanical disc brakes, and plenty of mounts for bags and gear, it’s ready for everything from gravel detours to weekend escapes.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other gravel bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Checkpoint ALR 3 specifications

Frameset

Frame

300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142×12 mm chamfered thru axle

Fork

Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Wheels

Tyre

Bontrager Girona Comp, wire bead, 60 tpi, 700×42 mm

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Drivetrain

Chain

Shimano LG500

Crank

Shimano CUES FCU60301, 40T ring, 165 mm length (XS, S)
Shimano CUES FCU60301, 40T ring, 170 mm length (M, ML)
Shimano CUES FCU60301, 40T ring, 172.5 mm length (L, XL)

Rear derailleur

Shimano CUES U6000 GS

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Bottom bracket

Praxis, T47 threaded, internal bearing

Shifter

Shimano CUES 10 Speed Right STU303010R

Components

Stem

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length (XS)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length (S, M)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length (ML, L)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length (XL)

Handlebar

Bontrager Elite Gravel, alloy, 40 cm width (XS, S)
Bontrager Elite Gravel, alloy, 42 cm width (M, ML)
Bontrager Elite Gravel, alloy, 44 cm width (L)
Bontrager Elite Gravel, alloy, 46 cm width (XL)

Saddle

Verse Short Comp, steel rails, 145 mm width

Seatpost

Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

Handlebar tape

Bontrager Gel Cork tape (XS, S, M, ML)
Trek gel cork (S, M, ML)
Trek Gel Cork tape (L, XL)

Brake rotor

Tektro, CentreLock, 160 mm

Brake

Shimano CUES U3030 (XS, S, M, ML, L, XL)
Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset (XS, S, M, ML, L, XL)
Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor. (XS, S, M, ML, L, XL)

Accessories

Headset part (see also: Bearing)

Bontrager Headset Expander Plug and Top Cap

Spokes

14 g stainless steel, black

Hub rear

Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142×12 mm thru axle

Hub front

Bontrager alloy, sealed bearing, CentreLock disc, 100×12 mm thru axle

Rim

Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve

Trek may change specifications without notice. Please confirm the spec with us before you order.
