Description

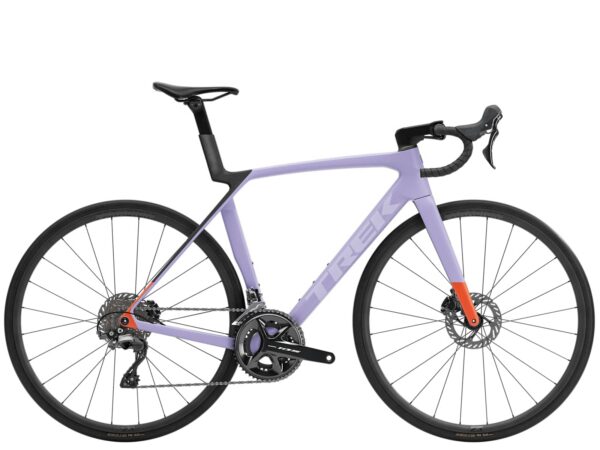

The Trek Madone SL 5 is part of Trek’s 2026-2027 road bike range. The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Madone SL 5 specifications

Frameset

Frame

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

Fork

Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12×100 mm chamfered thru-axle

Wheels

Valve

Bontrager XXX TLR valve, 50 mm

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Tyre

Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700×28 mm

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Skewer front

Bontrager Switch chamfered thru axle

Drivetrain

Chain

Shimano SLX M7100, 12-speed

Crank

Shimano 105 R7100, 50/34, 165 mm length (XS, S, M, ML)
Shimano 105 R7100, 50/34, 160mm length (XS, S)
Shimano 105 R7100, 50/34, 170 mm length (M, ML, L, XL)
Shimano 105 R7100, 50/34, 172.5 mm length (L, XL)

Rear derailleur

Shimano 105 R7100, 36T max cog

Cassette

Shimano 105 7101, 11-34, 12-speed

Bottom bracket

Praxis, T47 threaded, internal bearing

Shifter

Shimano 105 R7120, 12-speed

Front derailleur

Shimano 105 R7100, braze-on, down swing

Components

Stem

Trek RCS Pro, -7-degree, 80 mm length (XS)
Trek RCS Pro, -7-degree, 90 mm length (S, M)
Trek RCS Pro, -7-degree, 100 mm length (ML, L)
Trek RCS Pro, -7-degree, 110 mm length (XL)

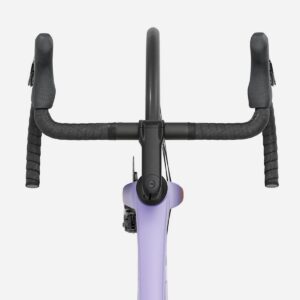

Handlebar

Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width (XS)
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width (S, M)
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width (ML, L)
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width (XL)

Saddle

Bontrager Aeolus Elite, austenite rails, 145 mm width

Brake rotor

Shimano CL700, CentreLock, 160 mm

Brake

Shimano 105 hydraulic disc, flat mount

Seatpost

Madone aero carbon seat post, 0 mm offset, short length

Handlebar tape

Trek EcoTack (XS, S, M, ML, L, XL)
Trek gel cork (XS, S, M, ML, L, XL)

Accessories

Spokes

14 g stainless steel, black

Hub front

Bontrager alloy, sealed bearing, CentreLock disc, 100×12 mm thru axle

Hub rear

Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142×12 mm thru axle

Spacer

Trek Road Integrated Stem Spacers

Rim

Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve

Trek may change specifications without notice. Please confirm the spec with us before you order.
