Description

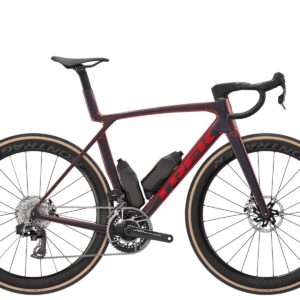

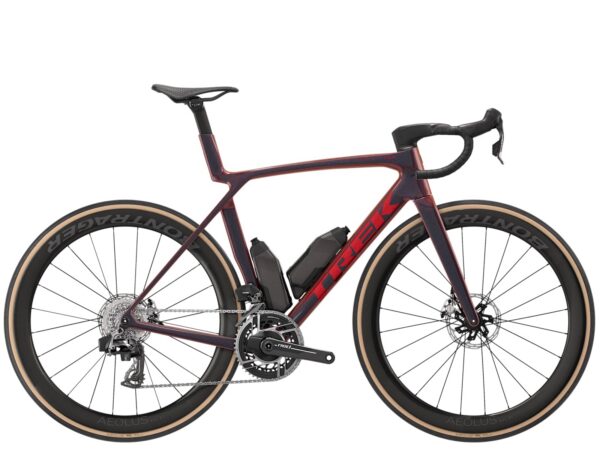

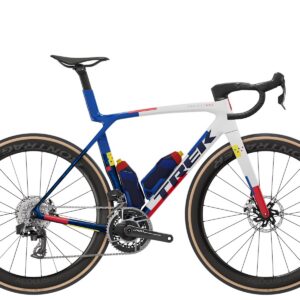

The Trek Madone SLR 9 AXS Gen 8 dominates the road with a balance of ultra-light weight and aerodynamic speed. It’s crafted from our highest-level 900 Series OCLV Carbon and is shaped for max efficiency on climbs, descents, and flats. A top-tier SRAM RED AXS E1 drivetrain with power meter, road-smoothing IsoFlow, Bontrager Aeolus RSL 51 wheels, Trek Aero RSL bar/stem, and RSL Aero Bottles and Cages complete the race-ready build.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Madone SLR 9 AXS specifications

Frameset

Fork

Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm chamfered thru axle

Wheels

Valve

Bontrager XXX TLR valve, 67 mm

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Wheel rear

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142×12 mm thru axle (XS, S, M, ML, L, XL)
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142×12 mm thru axle (XS, S, M, ML, L, XL)

Tyre

Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm (XS, S, M, ML, L, XL)
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700×28 mm (XS, S, M, ML, L, XL)
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700×28 mm (XS, S, M, ML, L, XL)

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Wheel front

Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100×12 mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

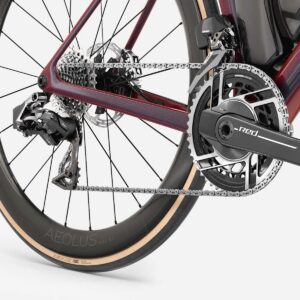

Drivetrain

Chain

thSRAM RED E1 (XS, S, M, ML, L, XL)
SRAM RED E1, 12/13-speed (S, M, ML, L)

Crank

SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length (XS, S)
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length (XS, S, M, ML)
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length (M, ML, L, XL)
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length (L, XL)

Rear derailleur

SRAM RED AXS E1, 36T max cog

Cassette

SRAM RED XG-1290 E1, 10-33, 12-speed

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Shifter

SRAM RED AXS E1

Front derailleur

SRAM RED AXS E1, braze-on

Components

Saddle

Aeolus RSL, carbon rails, 145 mm width (XS, S, M, ML, L, XL)
Aeolus RSL AirLoom, carbon rails, 145 mm width (XS, S, M, ML, L, XL)

Brake rotor

SRAM Paceline X, rounded, CentreLock, 160 mm

Brake

SRAM Red AXS E1 hydraulic disc, flat mount

Seatpost

Madone aero carbon seat post, 0 mm offset, short length

Handlebar tape

Trek EcoTack (XS, S, M, ML, L, XL)
Trek gel cork (XS, S, M, ML, L, XL)

Electric parts

Battery

SRAM AXS battery pack (with charger)

Accessories

Tube

Pirelli P Zero SmarTube, TPU

Headset part (see also: Bearing)

Bontrager Headset Expander Plug and Top Cap

Hub body

DT Swiss 240 alloy, sealed cartridge bearing, CenterLock, SRAM XD-R driver, 142×12 mm thru axle

Frame with Fork

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

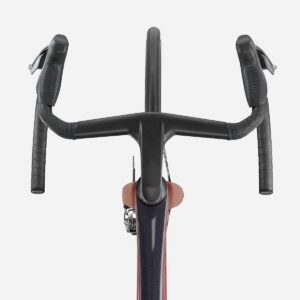

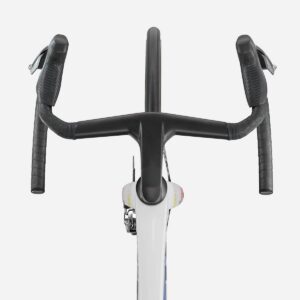

Handlebar/stem (integrated)

Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length (XS)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length (S)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length (M)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length (ML, L)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length (XL)

Trek may change specifications without notice. Please confirm the spec with us before you order.
