Description

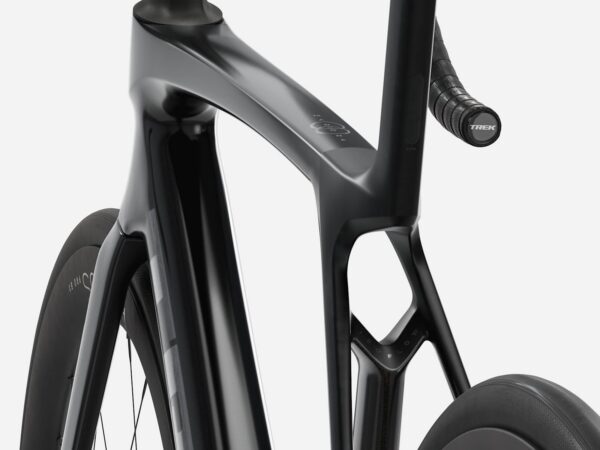

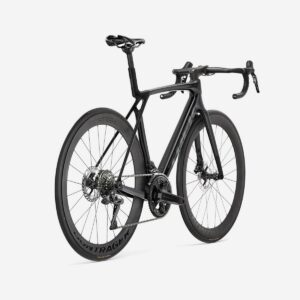

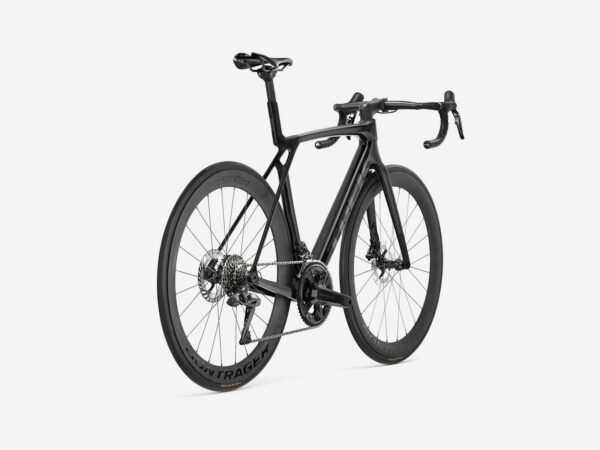

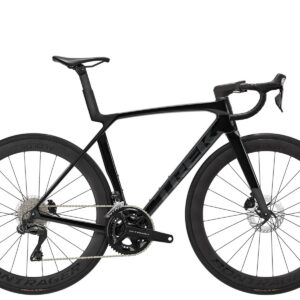

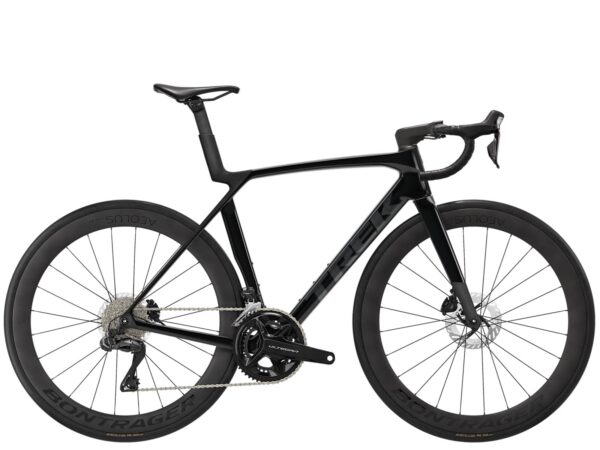

The Trek Madone SL 7 is part of Trek’s 2026-2027 road bike range. The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. It balances price and performance with a 500 Series OCLV Carbon frame for soaring climbs, aero geometry to cut drag, and IsoFlow for comfort. You get a Shimano Ultegra Di2 wireless drivetrain for smooth shifts, plus carbon wheels and handlebars for lightweight performance.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Madone SL 7 specifications

Frameset

Frame

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

Fork

Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12×100 mm chamfered thru-axle

Wheels

Wheel rear

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle

Tyre

Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700×28 mm (XS, S, M, ML, L, XL)
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm (ML)

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Wheel front

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle

Valve

Bontrager XXX TLR valve, 67 mm

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

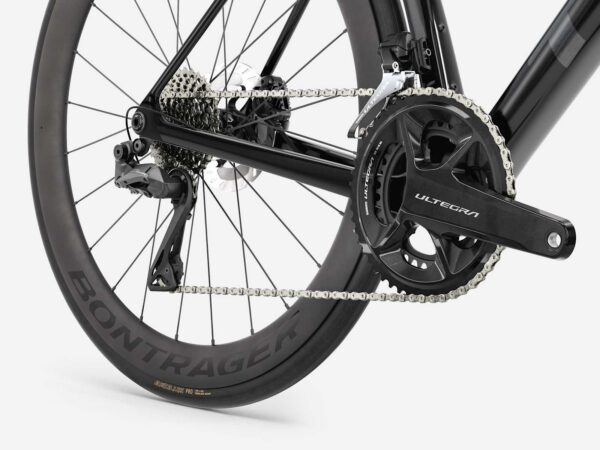

Drivetrain

Chain

Shimano Ultegra/XT M8100 (XS, S, M, ML, L, XL)
Shimano XT M8100, 12-speed (ML)

Crank

Shimano Ultegra R8100, 50/34, 160mm length (XS, S)
Shimano Ultegra R8100, 50/34, 165 mm length (XS, S, M, ML)
Shimano Ultegra R8100, 50/34, 170 mm length (M, ML, L, XL)
Shimano Ultegra R8100, 50/34, 172.5 mm length (L, XL)

Rear derailleur

Shimano Ultegra R8150 Di2, 34T max cog

Cassette

Shimano Ultegra R8101, 11-34, 12-speed

Bottom bracket

Praxis, T47 threaded, internal bearing

Front derailleur

Shimano Ultegra R8150 Di2, braze-on, down swing

Shifter

Shimano Ultegra R8171 Di2, 12-speed (XS, S, M, ML, L, XL)
Shimano Ultegra R8170 Di2, 12-speed (XS, S, M, ML, L, XL)

Components

Stem

Trek RCS Pro, -7-degree, 80 mm length (XS)
Trek RCS Pro, -7-degree, 90 mm length (S, M)
Trek RCS Pro, -7-degree, 100 mm length (ML, L)
Trek RCS Pro, -7-degree, 110 mm length (XL)

Saddle

Bontrager Aeolus Elite, austenite rails, 145 mm width

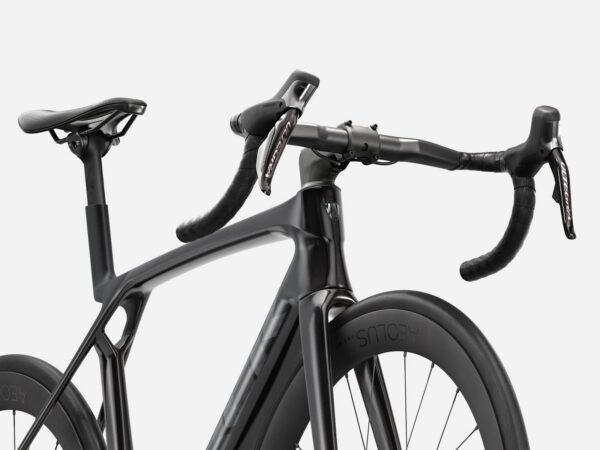

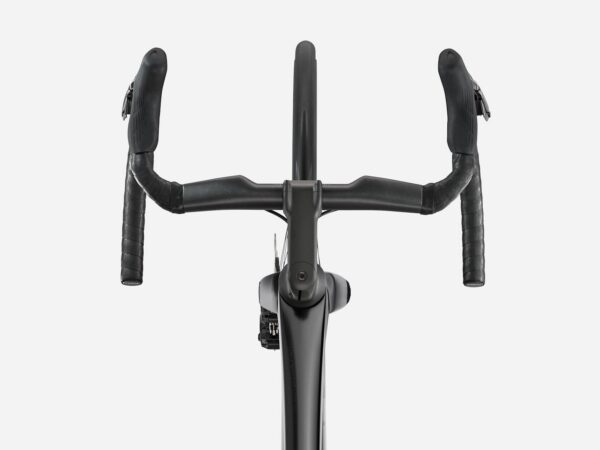

Handlebar

Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm width (XS)
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm width (S)
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm width (M, ML, L)
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width (ML)
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm width (XL)

Seatpost

Madone aero carbon seat post, 0 mm offset, short length

Handlebar tape

Trek EcoTack (XS, S, M, ML, L, XL)
Trek gel cork (XS, S, M, ML, L, XL)

Brake rotor

Shimano CL800, CentreLock, 160 mm

Electric parts

Battery

Shimano BT-DN300

Accessories

Spacer

Trek Road Integrated Stem Spacers

Trek may change specifications without notice. Please confirm the spec with us before you order.
