Description

The Trek Madone SLR 7 AXS Gen 8 is an aero, featherlight road bike built to race. Its 900 Series OCLV Carbon frame cuts weight and adds aero gains, while IsoFlow tech boosts comfort without sacrificing speed. It’s race-ready with a 2×12 SRAM Force AXS E1 wireless groupset with power meter cranks, Bontrager Aeolus Pro 51 wheels, Trek Aero RSL one-piece bar/stem, and RSL Aero Bottles and Cages for drag reduction.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Madone SLR 7 AXS specifications

Frameset

Fork

Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm chamfered thru axle

Wheels

Valve

Bontrager XXX TLR valve, 67 mm

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Wheel rear

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142×12 mm thru axle

Tyre

Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm (XS, S, M, ML, L, XL)
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700×28 mm (XS, S, M, ML, L, XL)

Wheel front

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

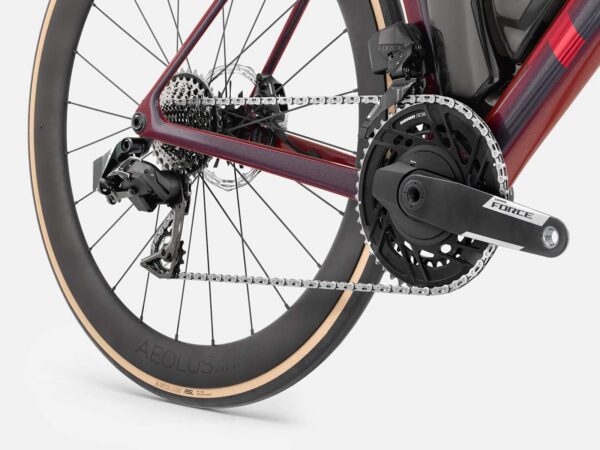

Drivetrain

Chain

SRAM Force E1, 12/13-speed

Crank

SRAM Force AXS with power meter, 48/35, DUB, 160 mm length (XS, S)
SRAM Force AXS with power meter, 48/35, DUB, 165 mm length (XS, S, M, ML)
SRAM Force AXS with power meter, 48/35, DUB, 170 mm length (M, ML, L, XL)
SRAM Force AXS with power meter, 48/35, DUB, 172.5 mm length (L, XL)

Rear derailleur

SRAM Force AXS, 36T max cog

Cassette

SRAM Force XG-1270, 10-33, 12-speed

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Shifter

SRAM Force AXS E1

Front derailleur

SRAM Force AXS, braze-on

Components

Saddle

Bontrager Aeolus Pro, carbon rails, 145 mm width (XS, S, M, ML, L, XL)
Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width (XS, S, M, ML, L, XL)

Brake rotor

SRAM Paceline X, rounded, CentreLock, 160 mm (XS, S, M, ML, L, XL)
SRAM CentreLine X, CentreLock, round edge, 160 mm (XS, S, M, ML, L, XL)

Brake

SRAM Force AXS hydraulic disc, flat mount

Seatpost

Madone aero carbon seat post, 0 mm offset, short length

Handlebar tape

Trek EcoTack (XS, S, M, ML, L, XL)
Trek gel cork (XS, S, M, ML, L, XL)

Electric parts

Battery

SRAM AXS battery pack (with charger)

Accessories

Tube

Pirelli P Zero SmarTube, TPU

Headset part (see also: Bearing)

Bontrager Headset Expander Plug and Top Cap

Hub body

DT Swiss 240 alloy, sealed cartridge bearing, CenterLock, SRAM XD-R driver, 142×12 mm thru axle

Frame with Fork

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

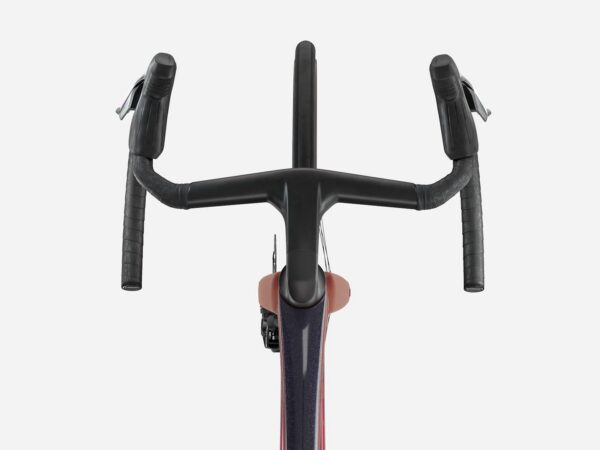

Handlebar/stem (integrated)

Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length (XS)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length (S)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length (M)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length (ML, L)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length (XL)

Trek may change specifications without notice. Please confirm the spec with us before you order.
