Description

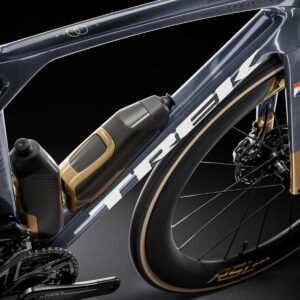

The Trek Madone SLR 9 AXS Gen 8 – No. 76 ICON is part of Trek’s 2027 road bike range. No. 76 comes on the Madone SLR 9 AXS Gen 8 with our highest-level 900 Series OCLV Carbon. This build is designed with a race-ready, top-level SRAM RED AXS E1 drivetrain with a power meter, special anniversary-edition Bontrager Aeolus RSL carbon wheels, a white-and-red saddle with red rails, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, bike fitting and servicing.

Not sure if this is the right bike for you? Browse our other road bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Madone SLR 9 AXS Gen 8 – No. 76 ICON specifications

Frameset

Fork

Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm chamfered thru axle

Wheels

Wheel rear

Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142×12 mm thru-axle, No. 76 edition

Tyre

Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm

Wheel front

Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100×12 mm thru-axle, No. 76 edition

Valve

Bontrager XXX TLR valve, 67 mm

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Drivetrain

Chain

thSRAM RED E1

Crank

SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length (XS, S)
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length (M, ML)
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length (L, XL)

Rear derailleur

SRAM RED AXS E1, 36T max cog

Cassette

SRAM RED XG-1290 E1, 10-33, 12-speed

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Front derailleur

SRAM RED AXS E1, braze-on

Shifter

SRAM RED AXS E1

Components

Saddle

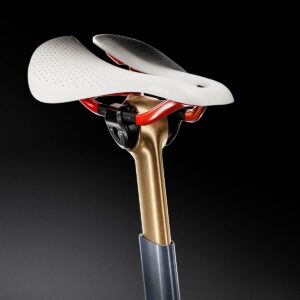

Aeolus RSL, carbon rails, 145 mm width, 50th anniversary edition

Seatpost

Madone aero carbon seat post, 0 mm offset, short length

Handlebar tape

Trek EcoTack, 50th anniversary edition

Brake rotor

SRAM Paceline X, rounded, CentreLock, 160 mm

Electric parts

Battery

SRAM AXS battery pack (with charger)

Accessories

Tube

Pirelli P Zero SmarTube, TPU

Headset part (see also: Bearing)

Bontrager Headset Expander Plug and Top Cap

Frame with Fork

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

Handlebar/stem (integrated)

Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length (XS)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length (S)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length (M)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length (ML, L)
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length (XL)

Trek may change specifications without notice. Please confirm the spec with us before you order.
