Description

The Trek Procaliber 9.6 is a race-ready cross-country hardtail built to fly. Its lightweight carbon frame delivers a smooth, efficient ride with IsoBow technology, while a 120mm RockShox Reba RL fork helps you stay fast and in control over rocks and roots. A mechanical SRAM Eagle 70 drivetrain keeps shifts crisp on punchy climbs, and 4-piston SRAM DB 6 brakes give you confident stopping power when it counts.

Why buy from Spokerite

Spokerite is the online store of CycloPro, an authorised Trek dealer at Walmer Downs in Gqeberha. When you order this bike from us, our own workshop mechanics assemble and safety-check it. It arrives ready to ride. Because we are an authorised dealer, Trek’s official warranty covers your bike. You also get a local workshop for setup, servicing and suspension tuning.

Not sure if this is the right bike for you? Browse our other hardtail mountain bikes or contact our team for advice. You can also read more about this model on Trek’s official website.

Trek Procaliber 9.6 specifications

Frameset

Frame

OCLV Mountain Carbon, IsoBow, tapered head tube, guided internal routing, rack & accessory mounts, balanced post mount brake, UDH, Boost148

Fork

RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

Suspension part

Bontrager Drop Lock remote

Wheels

Valve

Bontrager TLR valve, 50mm

Skewer rear

Bontrager Switch thru axle, removable lever

Wheel rear

Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29″

Tyre

Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40″

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Wheel front

Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29″

Rim strip

Bontrager TLR

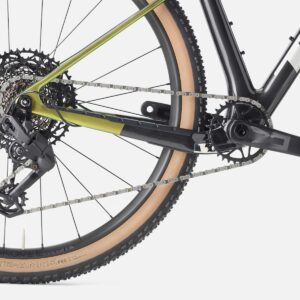

Drivetrain

Chain

SRAM Eagle 70, T-Type, 12-speed

Crank

Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length (S, M, ML)
Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 175 mm length (L, XL)

Rear derailleur

SRAM Eagle 70, T-Type

Cassette

SRAM Eagle XS-1270, T-Type,10-52, 12-speed

Bottom bracket

SRAM DUB, 92 mm, PressFit

Shifter

SRAM Eagle 70, 12-speed

Components

Stem

Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length (S)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length (M, ML)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length (L)
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length (XL)

Handlebar

Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width (S)
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width (M, ML, L, XL)

Saddle

Verse Short Comp, steel rails, 145 mm width

Brake rotor

SRAM CentreLine, 6-bolt, round-edge, 180 mm (S, M, ML, L, XL)
SRAM CenterLine, 6-bolt, round-edge, 160 mm (S, M, ML, L, XL)
SRAM CenterLine 2.0, 6-bolt, 180 mm (S, M, ML, L, XL)

Brake

SRAM DB 6 4-piston hydraulic disc

Grips

Trek Line Comp, nylon lock-on

Seatpost

Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length (S)
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length (M, ML, L)
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length (XL)

Accessories

Head set

FSA IS-2, 1-1/8″ top, 1.5″ bottom

Headset part (see also: Bearing)

1-1/8” threadless, sealed cartridge bearings

Seat collar

Bolt-on, 36.4 mm

Tool

Bontrager Switch thru axle, removable lever

Trek may change specifications without notice. Please confirm the spec with us before you order.
